28MPH
Top Speed
1000W
Peak Motor
48V*20AH
Battery Capacity
Max 400Lbs
Maximum Load
Range 60-80 Miles
Single Charge Range
85Nm
Torque Sensor
Back to School Special

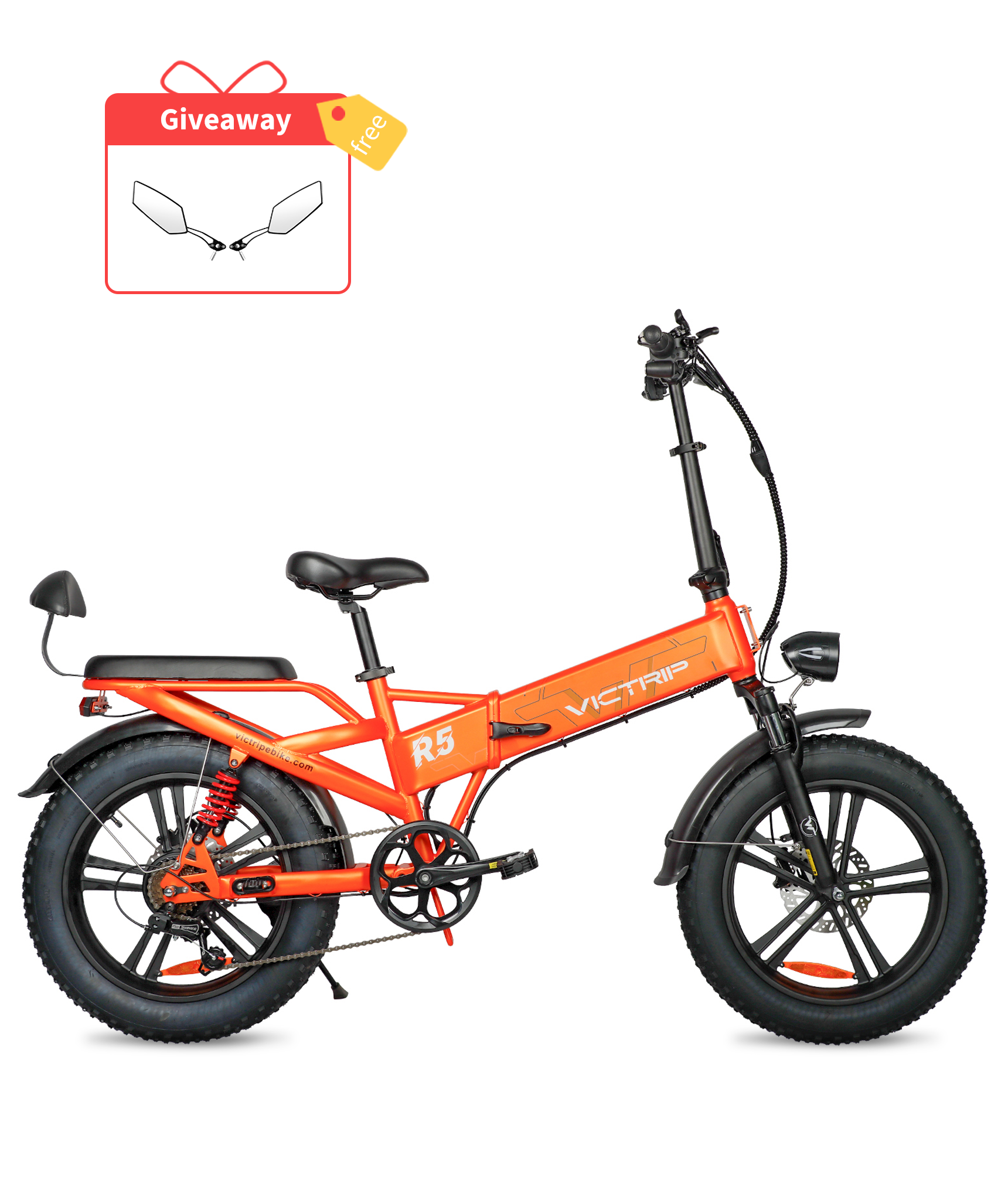

VICTRIP® R5 Foldable Ebike
750W Electric Bike Battery 48V Fat Tire Ebikes
Pairs well with
PERFORMANCE
Battery : 960Wh (48V 20Ah) LG cells
Motor : 750W (Peak1000W)
Top Speed :28MPH
RANGE THROTTLE: 50miles
PAS RANGE: Up to 60-80Miles
Charge Time : 5-6 hrs
Charger: Lithium battery charger 48V 3A
Controller: 48V, 20A current limit
Suspension： Front Adjustable
Torque: 85NM
Throttle: Half-Twist Throttle
Gearing & Rear Derailleur : 7 speed
MAXIMUM CLIMBING DEGREE: 30°-35°
WATERPROOF RATES: IP65 Waterproof, Including Motor Battery, Display and Wiring
RIDING MODE: pure electric mode, power-assisted mode, pedal mode, walking mode
FRAMESET
Frame : High Carbon Steel
Inner Tubes : 20" x 4.0"
CHAIN: 114 Segments
CRANK SET: 48T*170MM
PEDALS: 9/16, Aluminium
BRAKES: 180mm front and rear hydraulic brakes
EBIKE Weight : 78 lbs(No batteries included)
Battery Weight:12 lbs
Package Weight: 102lbs
Packing Size:(LengthxWidthxHeight)
148*31*73cm
Rider Weight Limit : 400lbs
Recommended Rider Height :5'3"-6'5"
Seat Height : 28"- 38"
Size Guide
A - Total Length: 69.3 in
B - Handlebar to Ground Height: 45.28 in-50 in
C - Seat to Ground Height: 28.3 in
D - Seat Length: 15 in
E - Handlebar Length: 24.4 in
F - Wheelbase: 51.2 in
G - Stand Height: 26.4 in
H - Wheel Diameter: 23.2 in
What's in the Box ?
R5 E-bike *1
48V20Ah Battery*1
Display*1
Battery Charger*1
Assembly Tools*1
Pedals *2
Key*4
User Manual *1
Rear seat + backrest *1 set
Rear passenger footrest *1 pair
Front fender*1+Rear fender*1
3-8 Days Delivery
📦 Shipping Tips
1️⃣ Quick Order Processing: Our professional logistics team works around the clock to ensure your order is packed and shipped within 1-2 business days. Delivery typically takes 3-8 business days, depending on the courier's speed.
2️⃣ Smart Warehouse Dispatch: With 6 warehouses across the US, we automatically select the nearest warehouse to ship your order, ensuring faster delivery.
3️⃣ Multiple Carrier Options: We work with FedEx, UPS, DHL, and other carriers offering signature services to keep your package safe.
4️⃣ Tracking Updates: Logistics tracking information may take up to 3 business days to update. Thank you for your patience.
5️⃣ Seamless Delivery Experience: From order placement to delivery, we strive to get your products to you as quickly as possible for a worry-free shopping experience.
⚡ Shop with Confidence, Receive with Ease!
1-year warranty
1️⃣ Free Repair Services: During the warranty period, if you encounter any product quality issues, you can enjoy the following free repair services:
a) Provide relevant videos and information, and we will send you replacement parts by courier.
b) Provide relevant videos and information, and you can choose to repair it at a nearby repair shop. Submit proof of payment and we will reimburse the repair costs.
2️⃣ Free Replacement: If the product cannot be repaired during the warranty period, we will provide a free replacement.
3️⃣ 24/7 Professional Support: Our dedicated technical team is available 24/7 to offer prompt after-sales support and technical assistance.
⚡ Choose us for worry-free warranty service and a smoother riding experience!
Tax-Free
Buy directly from the VICTRIP EBIKE brand website and enjoy tax-free benefits. Consumers do not need to pay 5%-15% sales tax because VICTRIP EBIKE will bear the sales tax.
Compared with Amazon, you can save up to $70 in taxes for each electric bike purchased. For example, the price of buying a TITAN S model (including tax) on other platforms is $1170, but on our brand website, it is only $1099, which directly saves you $70.
28MPH
Top Speed
1000W
Peak Motor
48V*20AH
Battery Capacity
Max 400Lbs
Maximum Load
Range 60-80 Miles
Single Charge Range
85Nm
Torque Sensor
VICTRIP® R5 Foldable Ebike
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
R5 – Power, Performance, and Safety
WHAT IS R5?
The R5 750w ebike is built for adventure, effortlessly transitioning from city streets to rugged trails. With an LG 48V 20Ah lithium battery, it offers up to 80 miles of range, while its 85Nm torque conquers 30-35° inclines with ease. The mid-step frame, wide tires, and full suspension provide exceptional comfort and stability on any terrain. Designed with safety in mind, the R5 meets UL2849 safety standards, ensuring a secure and reliable ride every time.
Dual shock system
Inspired by suspension design, front and rear shock absorbers provide superior comfort and stability. The Foldable Fat Tire Electric Bike system features two shock absorbers that effectively handle bumps and provide a smoother ride. Whether on asphalt, dirt or rocky surfaces, this design ensures optimal performance and a more controlled ride.
20'' x 4.0''Fat Tire
Both the front and rear are equipped with
20'' x 4.0''integrated 10-piece straight-rib tires. This design concept implies a focus on stability and durability.
It is suitable for occasions with high requirements for strength and stability. It can easily conquer flat roads, mountain roads, snow, and gravel roads, providing better grip.
Discover the Power of R5 E-Bikes ➕get more
Motor ➠
The R5 ebike fat tire is equipped with a powerful 1000W rear-drive high-speed motor, capable of speeds of over 28MPH or more, and up to 85Nm of torque. Peak speeds exceed 10,000r/min, ensuring unparalleled performance. The durable one-piece 10-blade straight-rib rear wheel enhances stability, perfect for demanding terrain.
Designed for low noise, smooth operation and high efficiency, the motor excels in both power and reliability. Paired with an advanced 5-level Pedal Assist System (PAS), it provides seamless power delivery, excellent heat resistance and long-lasting durability - perfect for conquering any terrain and long-distance adventures.
Battery
The Victrip R5 750w electric bike is powered by a high-capacity LG 48V 20Ah battery with 21700 cells, offering 6% higher energy density, enhanced power output, and an impressive 80+ mile range in pedal-assist mode.
The battery features an advanced management system (BMS) to prevent overcharging, over-discharging, and short-circuiting, ensuring safety and reliability. Its quick-release design makes replacement and maintenance effortless, while the IP65 waterproof rating guarantees dependable performance in various environments.
Equipped with a48V 3A charger, the 5-6 hours of fast charging timeand rigorous safety testing, the R5 delivers exceptional range, durability, and peace of mind for any ride.
Brake
The sensitive braking system, with 180mm large-disc hydraulic brake discs at the front and rear, can provide sufficient braking force in a short distance on both wet and dry roads.
suspension
Adjustable suspension
The right rotary adjustment button can adjust the hardness of the suspension, with a maximum adjustment range of 60mm, helping you cope with different road conditions and ensuring a smooth and safe ride.
Throttle
The R5 ebikes fat tire half-twist throttle ensures precise speed control with minimal effort, reducing unintended acceleration on rough roads or when starting off. It is compatible with riding accessories to increase safety, convenience and stability, making it perfect for daily commuting and rough terrain.
Lighting
The Victrip R5 electric bike 750W is equipped with a comprehensive high-performance lighting system, ensuring greater safety and convenience when riding at night or on complex road conditions. The integrated taillight and brake light enhance visibility and provide a clear signal to vehicles and pedestrians when slowing down. The rear left and right turn signals make your turning intentions clear, improving road safety. Additionally, the powerful LED headlight offers excellent illumination on dimly lit streets or remote paths, ensuring clear visibility. These thoughtful features enhance your riding experience, making every journey safer and more efficient.
DISPLAY
The IP65 LCD display provides riders with essential information, including current speed, battery level, and mileage. This real-time feedback enables riders to monitor their ride more effectively and make informed decisions.
It also comes with a USB port for easy charging while on the go.
Seat
One-piece shelve is more stable and durable.
The leather cushion and backrest are removable, so you can change them according to your needs.(Can be fitted with rear basket, rearseat bag or child safety seat)
The folding rear passenger footrest is convenient for passengers to get on and off the vehicle.
size
With just 3 simple steps, R5 can be folded up in 15 seconds.
It can be folded and carried in various scenarios, including subways, elevators, buses and car trunks. Very easy to store or take with you on a trip.
Folded size:37*25*36(inches)
pedals
The R5 pedal assist electric bike introduces an innovative design for its footrests, enhancing user convenience. The foldable footrests not only make it easier to store and place the bike but also improve stability, reducing the likelihood of bumps during rides.
Product details
In the Box
- R5 E-bike *1
- 48V20Ah Battery*1
- Display*1
- Battery Charger*1
- Assembly Tools*1
- Pedals *2
- Key*4
- User Manual *1
- Rear seat + backrest *1 set
- Rear passenger footrest *1 pair
- Front fender*1+Rear fender*1
Specification
- Battery ：48V20Ah
- Range ：Up to 80+ Miles
- Motor ：750W（peak1000W）
- Tires： 20" x 4" puncture resistant tires
- Light：Headlights, taillights and brake lights.
- Charger ： Lithium battery charger 48V5A
- Controller ：48V18A current limit
- Display：Smart LCD Display
- Bike Weight： 78lbs(No batteries included)
- Payload Capacity ：400 lbs
- Recommended Rider Heights ：5'3" to 6'5"
- Pedal Assist Intelligent ：0~5 Level Pedal Assist
- Throttle:Half-Twist Throttle
- Front handlebar with lock and adjustment function
E-system & Drivetrain
E-system & Drivetrain
Battery
48V20Ah (960Wh)
Fast Charger
48V 3A
Display Type
Color LCD Screen
Rear Derailleur
Shimano 7 speed
Weight & Dimensions
Weight
34kg / 78 lbs
Weight limit
Maximum total weight limit (combined weight of rider and cargo) of 400 pounds (180kg).
Folded Dimensions
37*25*36 inch
Unfolded Dimensions
69.3*22*50 inch
Included in the Box
R5
Toolkit
charger
Four keys
Manual
Fender
R5 Size
A - Total Length: 69.3 in
B - Handlebar to Ground Height: 49.6 in
C - Seat to Ground Height: 28.3 in
D - Seat Length: 15 in
E - Handlebar Length: 24.4 in
F - Wheelbase: 51.2 in
G - Stand Height: 26.4 in
H - Wheel Diameter: 23.2 in
Folded size
With just 3 simple steps, R5 can be folded up in 15 seconds.
It can be folded and carried in various scenarios, including subways, elevators, buses and car trunks. Very easy to store or take with you on a trip.
Folded size:37*25*36(inches)
SMART LIGHT
The Victrip R5 folding ebike 750w features a high-performance lighting system for enhanced safety and convenience. Its integrated taillight, brake light, and turn signals improve visibility and road safety. A powerful LED headlight ensures clear illumination in low-light conditions, making every ride safer and more efficient.
Learn More
More detailed feature introduction for the Victrip-R5 Electric Bicycle.
Adjustable Front Fork
Open for shock absorption, close for no shock absorption, easily adjustable to enhance ride comfort.
Adjustable Seat
Customizable to your height for a comfortable riding experience.
7-Speed Adjustment
Select the ideal gear based on terrain for smooth riding in any.
Rider Review
FAQs-R5
What is the difference between R5 and R5S?
R5S is a low-step design, suitable for the elderly and women wearing skirts, making it easier to get on and off the bike. R5 is a medium-step design, suitable for men and cross-country riders. Except for the difference in step design, the other functions of the two are the same.
What is the R5 tire?
The R5 features one-piece wheels, which are stronger, more durable, and offer superior load capacity compared to traditional spoked wheels.
If you prioritize low maintenance, high durability, and excellent shock absorption, one-piece wheels are the perfect choice for city commuting, long-distance riding, and rough terrains. They provide a hassle-free experience with outstanding riding comfort.
What Types of Terrain Can R5 Handle?
R5 ebikes are designed for off-road use on rugged, unpaved surfaces with their wide and fat tires. These surfaces include dirt trails, gravel roads, grass, sand, and light snow. They can handle rougher terrains better than bikes with narrow road tires, but may still struggle on very technical mountain trails. R5 is also suitable for all-season use.
What is the difference between the R5 and JANUS 2.0 series?
The R5 series is a comprehensive upgrade to the JANUS 2.0, offering a more refined and superior riding experience. Key improvements include a front and rear suspension system for exceptional comfort and stability, along with three stylish color options: black, white, and orange. The 20-inch one-piece 10-blade aluminum alloy wheels ensure durability and improved handling. Additional upgrades feature a rear seat cushion, a passenger backrest, and foldable passenger footrests for added convenience. The R5 is equipped with an upgraded high-beam front light, a premium leather half-turn throttle, and a large LED display, delivering unmatched safety, control, and style for riders.
What is the weight of the bike ?
Total weight of R5 folding ebike is 102 lbs: the bike weight is 78 lbs, the battery weight is 12 lbs.
Does my height/weight suit the R5?
The recommended rider height for R5 is 5'3" ~ 6'5"; The total payload capacity of R5 is 400 lbs (not including the bike weight).
Can I transport R5 in a car trunk?
R5 can be folded and stored in a car trunk. Its folded dimensions are 37*25*31 inch, and its unfolded dimensions are 69.3*22*50 inch.
How to start the power supply?
To open the R5, you need to insert the key into the keyhole at the bottom of the frame and the right side of the handlebar at the same time, and rotate it clockwise 1 circle.
Why are there 4 keys?
R5 is equipped with 4 keys, the functions are: 2 to open the throttle, 2 to lock the battery and turn on the power
Can I Ride R5 in The Rain?
Though Victrip e-bikes are designed to handle wet conditions, please keep in mind that riding in heavy rain may affect battery life and reduce traction, so exercise caution and avoid riding in the rain as much as possible. As for the waterproof level, the whole bike meets IPX5 standards; the motor, battery, and display meet IP64 standards.
Is my R5 pre-assembled?
The R5 is partially assembled. You have to install some parts by yourself, such as the front wheel, handlebar, saddle, pedals, and fender. You can download the R5 user manual or look at the assembly video for help.
Do I need to pay taxes?
Tax-Free
Buy directly from the VICTRIP EBIKE brand website and enjoy tax-free benefits. Consumers do not need to pay 5%-15% sales tax because VICTRIP EBIKE will bear the sales tax.
What is the warranty?
1-year warranty
1️⃣ Free Repair Services: During the warranty period, if you encounter any product quality issues, you can enjoy the following free repair services:
a) Provide relevant videos and information, and we will send you replacement parts by courier.
b) Provide relevant videos and information, and you can choose to repair it at a nearby repair shop. Submit proof of payment and we will reimburse the repair costs.
2️⃣ Free Replacement: If the product cannot be repaired during the warranty period, we will provide a free replacement.
3️⃣ 24/7 Professional Support: Our dedicated technical team is available 24/7 to offer prompt after-sales support and technical assistance.
⚡ Choose us for worry-free warranty service and a smoother riding experience!
SHIPPING
3-8 Days Delivery
📦 Shipping Tips
1️⃣ Quick Order Processing: Our professional logistics team works around the clock to ensure your order is packed and shipped within 1-2 business days. Delivery typically takes 3-8 business days, depending on the courier's speed.
2️⃣ Smart Warehouse Dispatch: With 6 warehouses across the US, we automatically select the nearest warehouse to ship your order, ensuring faster delivery.
3️⃣ Multiple Carrier Options: We work with FedEx, UPS, DHL, and other carriers offering signature services to keep your package safe.
4️⃣ Tracking Updates: Logistics tracking information may take up to 3 business days to update. Thank you for your patience.
5️⃣ Seamless Delivery Experience: From order placement to delivery, we strive to get your products to you as quickly as possible for a worry-free shopping experience.
⚡ Shop with Confidence, Receive with Ease!

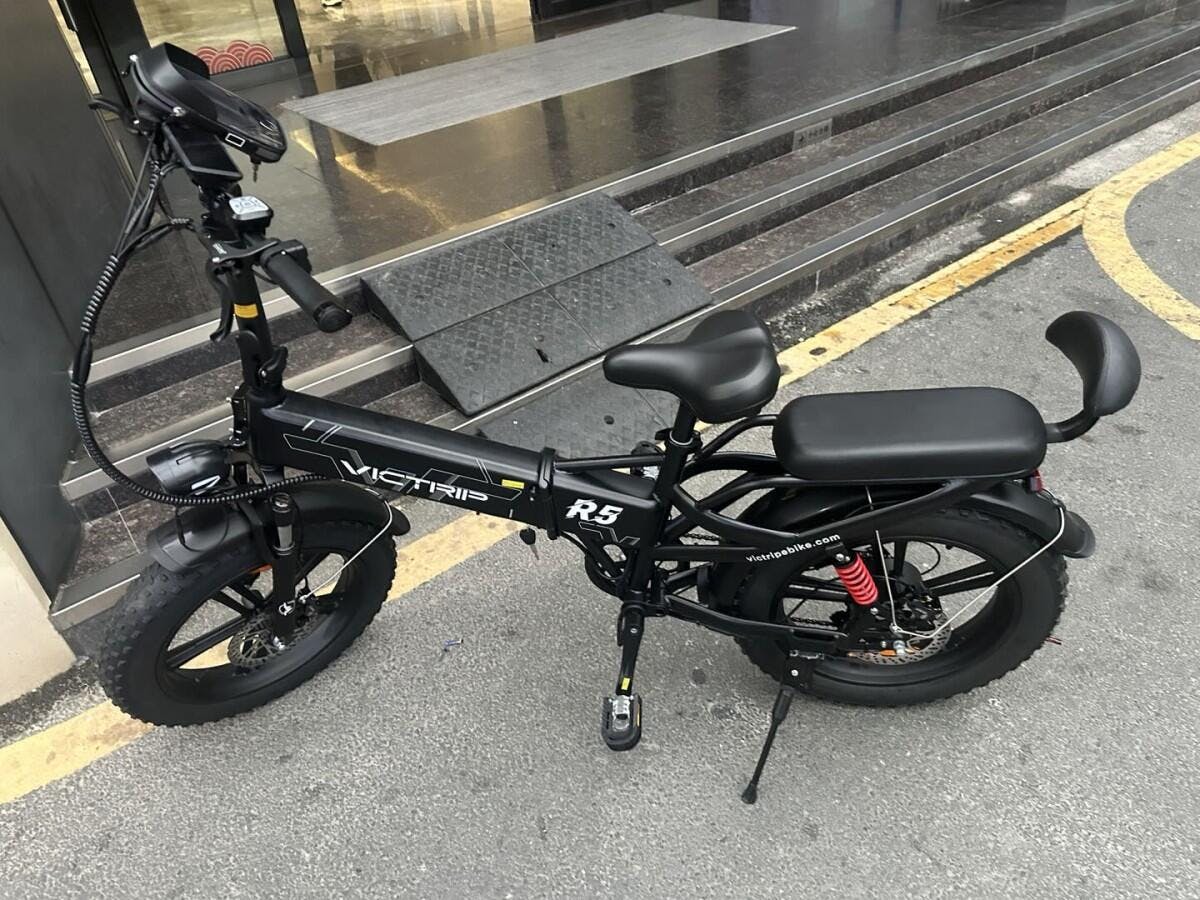

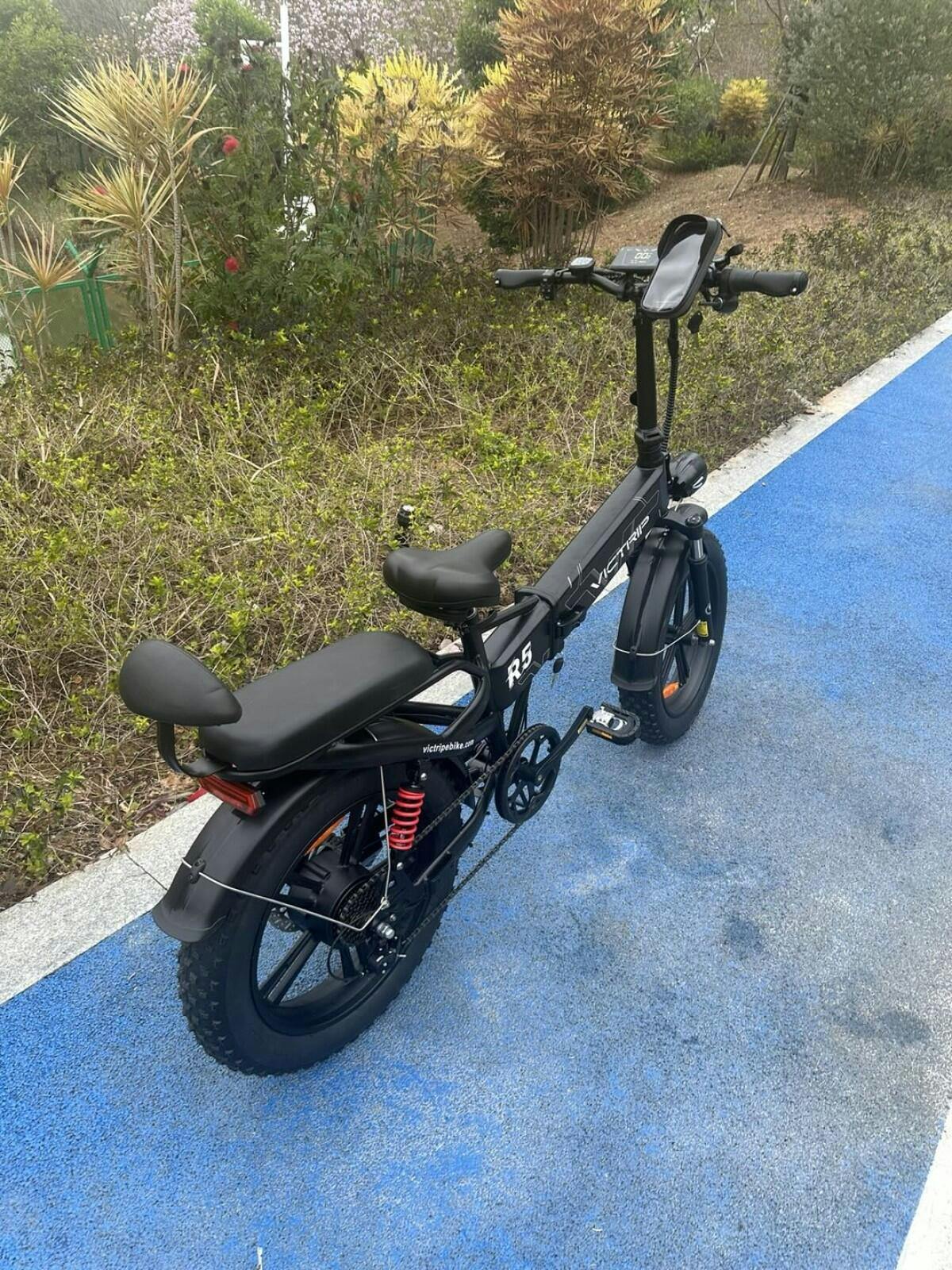

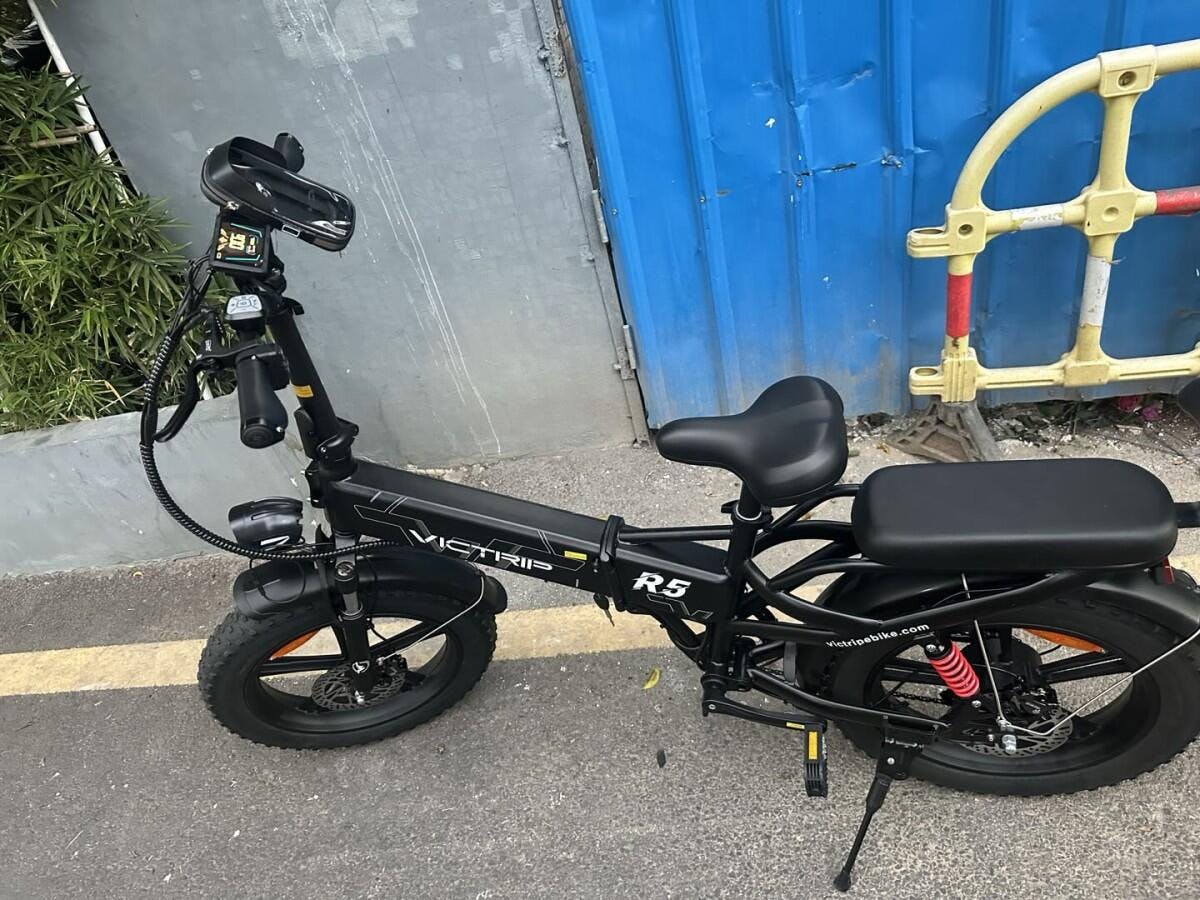

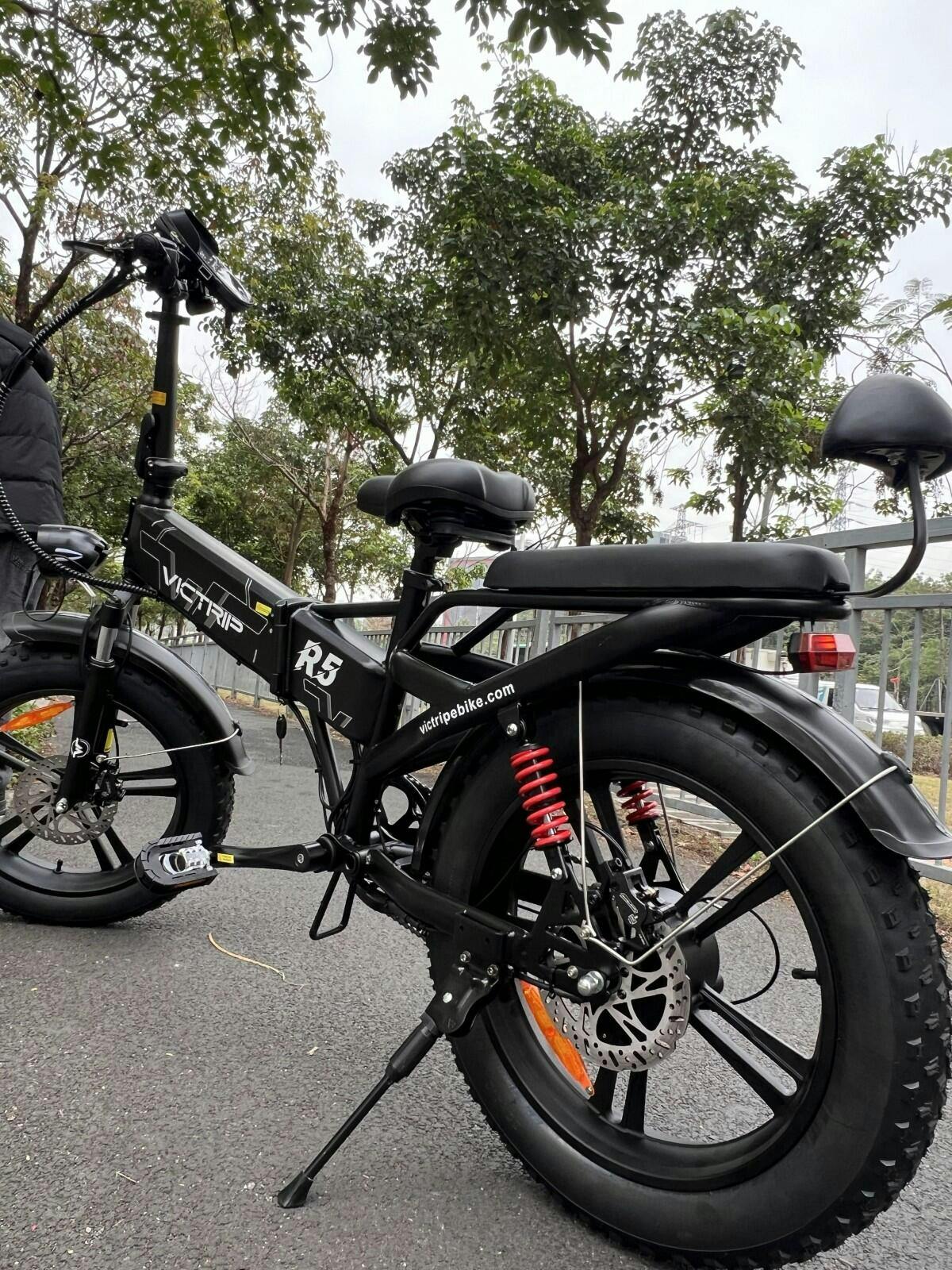

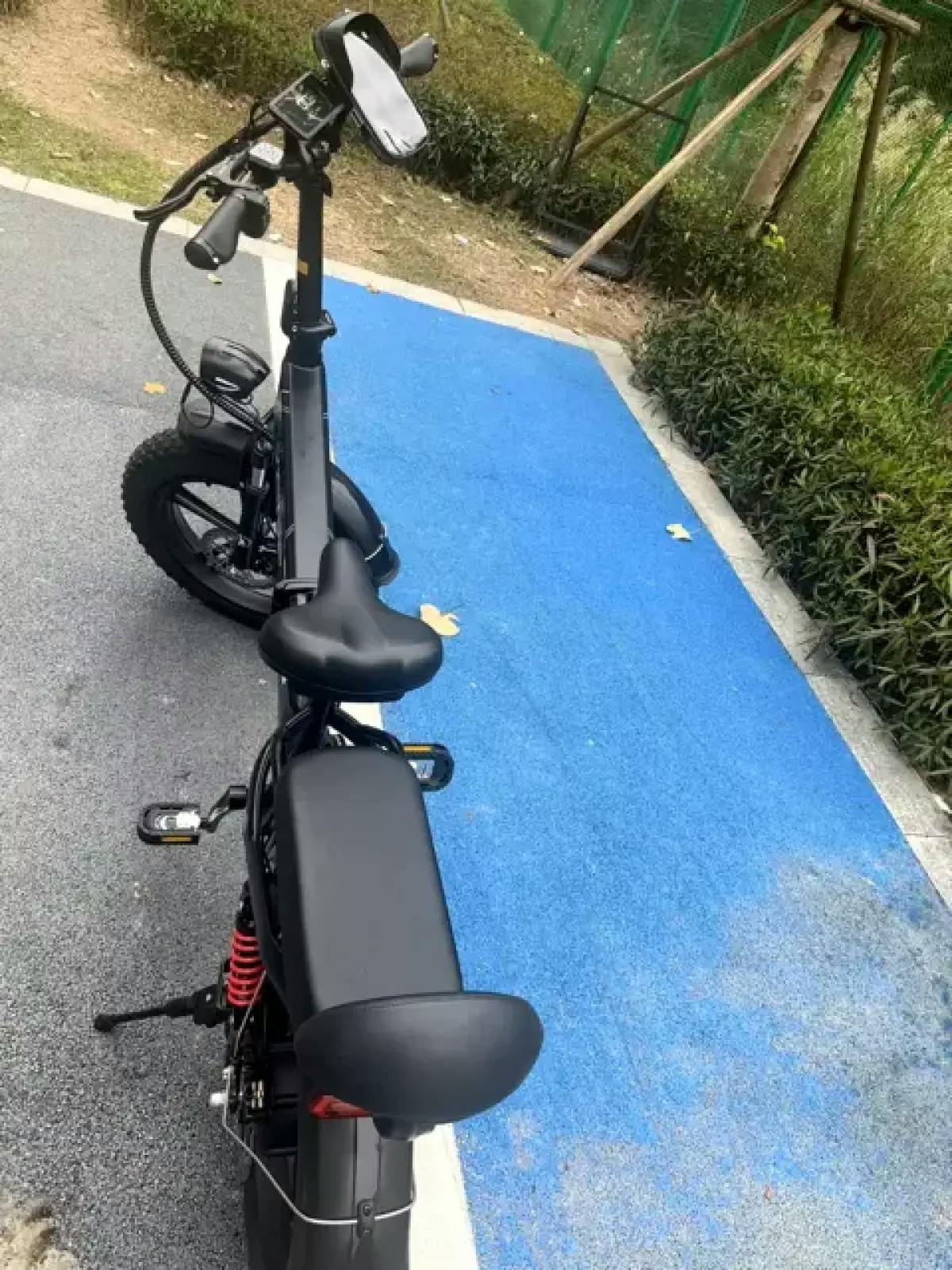

Customer Reviews
