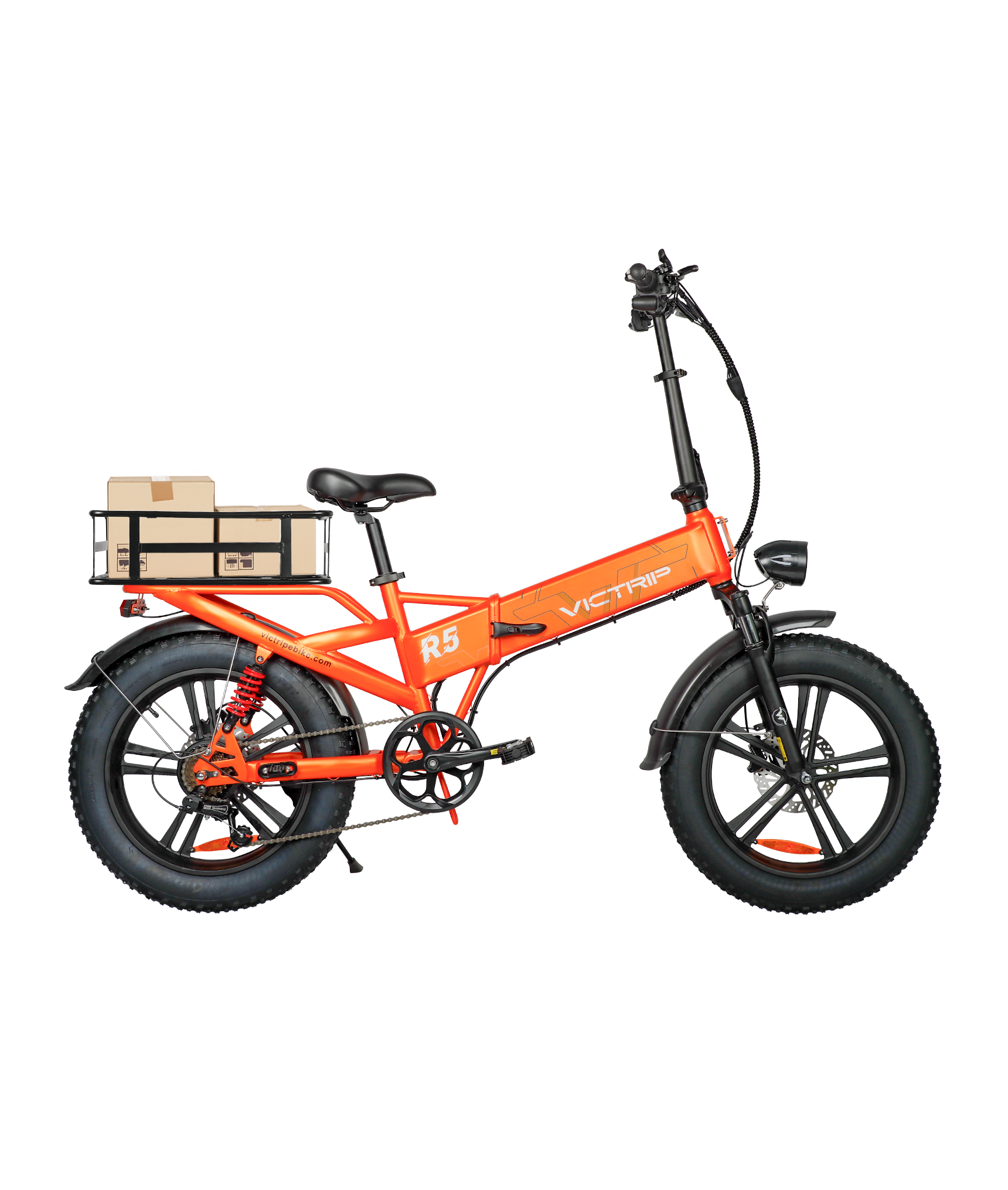

VICTRIP® R5 Foldable Ebike
Pairs well with
PERFORMANCE
Top Speed :28MPH
RANGE THROTTLE: 50miles
PAS RANGE: Up to 60-80Miles
Charge Time : 4-5hrs
Battery : 960Wh (48V 20Ah)
Motor : 750W(peak850W)
Charger: Lithium battery charger 48V5A
Controller: 48V, 18A current limit
Suspension： Front Adjustable
Torque: 80NM
Throttle: Half-Twist Throttle
Gearing & Rear Derailleur : 7 speed
MAXIMUM CLIMBING DEGREE: 30°-35°
WATERPROOF RATES: IP65 Waterproof, Including Motor Battery, Display and Wiring
RIDING MODE: pure electric mode, power-assisted mode, pedal mode, walking mode
FRAMESET
Frame : High Carbon Steel
Inner Tubes : 20" x 4.0"
CHAIN: 114 Segments
CRANK SET: 48T*170MM
PEDALS: 9/16, Aluminium
BRAKES: 180mm front and rear hydraulic brakes
EBIKE Weight : 78 lbs(No batteries included)
Battery Weight:12 lbs
Package Weight: 102lbs
Packing Size:(LengthxWidthxHeight)
148*31*73cm
Rider Weight Limit : 400lbs
Recommended Rider Height :5'3"-6'5"
Seat Height : 33"
Size Guide
A - Total Length: 69.3 in
B - Handlebar to Ground Height: 49.6 in
C - Seat to Ground Height: 28.3 in
D - Seat Length: 15 in
E - Handlebar Length: 24.4 in
F - Wheelbase: 51.2 in
G - Stand Height: 26.4 in
H - Wheel Diameter: 23.2 in
What's in the Box ?
R5 E-bike *1
48V20Ah Battery*1
Display*1
Battery Charger*1
Assembly Tools*1
Pedals *2
Key*4
User Manual *1
Rear seat + backrest *1 set
Rear passenger footrest *1 pair
Front fender*1+Rear fender*1
VICTRIP® R5 Foldable Ebike
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
48V20Ah
LG Lithium-Ion Battery
60-80 Miles
Range
750W
1000W Rated/Peak Motor
28MPH
Speed
PRE-PAY $50 FOR $100 COUPON
Limited 100 offers . First come, first served!
36 customers have placed orders
WHAT IS R5?
R5, the all-terrain conqueror. From city streets to rugged trails, the R5 delivers up to 80 miles of range on an LG 48V20Ah tubular lithium battery. With an impressive 80Nm torque, it effortlessly conquers inclines of up to 30-35 degrees. The unique mid-step frame design, wide tires, and full suspension system ensure superior comfort and stability. No matter the terrain, the R5 redefines cycling with power and style, making every ride feel fresh and exciting.
Dual shock system
Inspired by suspension design, front and rear shock absorbers provide superior comfort and stability. The system features two shock absorbers that effectively handle bumps and provide a smoother ride. Whether on asphalt, dirt or rocky surfaces, this design ensures optimal performance and a more controlled ride.
20'' x 4.0''Fat Tire
Both the front and rear are equipped with
20'' x 4.0''integrated 10-piece straight-rib tires. This design concept implies a focus on stability and durability.
It is suitable for occasions with high requirements for strength and stability. It can easily conquer flat roads, mountain roads, snow, and gravel roads, providing better grip.
Discover the Power of R5 E-Bikes
Motor
The R5 is equipped with a powerful 1000W rear-drive high-speed motor, capable of speeds of over 28MPH or more, and up to 80Nm of torque. Peak speeds exceed 10,000r/min, ensuring unparalleled performance. The durable one-piece 10-blade straight-rib rear wheel enhances stability, perfect for demanding terrain.
Designed for low noise, smooth operation and high efficiency, the motor excels in both power and reliability. Paired with an advanced 5-level Pedal Assist System (PAS), it provides seamless power delivery, excellent heat resistance and long-lasting durability - perfect for conquering any terrain and long-distance adventures.
Battery
The Victrip R5 is powered by a high-capacity LG 48V20Ah battery with UL-certified 21700 cells, offering 6% higher energy density, enhanced power output, and an impressive 80+ mile range in pedal-assist mode.
The battery features an advanced management system (BMS) to prevent overcharging, over-discharging, and short-circuiting, ensuring safety and reliability. Its quick-release design makes replacement and maintenance effortless, while the IP65 waterproof rating guarantees dependable performance in various environments.
With a fast 3-4 hour charge time and rigorous safety testing, the R5 delivers exceptional range, durability, and peace of mind for any ride.
Brake
The sensitive braking system, with 180mm large-disc hydraulic brake discs at the front and rear, can provide sufficient braking force in a short distance on both wet and dry roads.
suspension
Adjustable suspension
The right rotary adjustment button can adjust the hardness of the suspension, with a maximum adjustment range of 60mm, helping you cope with different road conditions and ensuring a smooth and safe ride.
Throttle
The R5's half-twist throttle ensures precise speed control with minimal effort, reducing unintended acceleration on rough roads or when starting off. It is compatible with riding accessories to increase safety, convenience and stability, making it perfect for daily commuting and rough terrain.
Lighting
Equipped with a large LED bulb, the taillight is equipped with a red LED bulb, which saves energy and electricity, making riding more convenient and safer. The integrated taillight will flash when braking, becoming a warning light at night.
DISPLAY
The IP65 LCD display provides riders with essential information, including current speed, battery level, and mileage. This real-time feedback enables riders to monitor their ride more effectively and make informed decisions.
It also comes with a USB port for easy charging while on the go.
Seat
One-piece shelve is more stable and durable.
The leather cushion and backrest are removable, so you can change them according to your needs.(Can be fitted with rear basket, rearseat bag or child safety seat)
The folding rear passenger footrest is convenient for passengers to get on and off the vehicle.
size
With just 3 simple steps, R5 can be folded up in 15 seconds.
It can be folded and carried in various scenarios, including subways, elevators, buses and car trunks. Very easy to store or take with you on a trip.
Folded size:37*25*31(inches)
pedals
Aluminum pedals
Safety reflective sheets are installed, which is a small design to make cyclists safer when riding at night. The reflective sheets can make the vehicles behind notice our riding.
Product details
In the Box
- R5 E-bike *1
- 48V20Ah Battery*1
- Display*1
- Battery Charger*1
- Assembly Tools*1
- Pedals *2
- Key*4
- User Manual *1
- Rear seat + backrest *1 set
- Rear passenger footrest *1 pair
- Front fender*1+Rear fender*1
Specification
- Battery ：48V20Ah
- Range ：Up to 80+ Miles
- Motor ：750W（peak1000W）
- Tires： 20" x 4" puncture resistant tires
- Light：Headlights, taillights and brake lights.
- Charger ： Lithium battery charger 48V5A
- Controller ：48V18A current limit
- Display：Smart LCD Display
- Bike Weight： 78lbs(No batteries included)
- Payload Capacity ：400 lbs
- Recommended Rider Heights ：5'3" to 6'5"
- Pedal Assist Intelligent ：0~5 Level Pedal Assist
- Throttle:Half-Twist Throttle
- Front handlebar with lock and adjustment function
E-system & Drivetrain
E-system & Drivetrain
Battery
48V20Ah (960Wh)
Fast Charger
48V 5A
Display Type
Smart LCD Display
Rear Derailleur
Shimano 7 speed
Weight & Dimensions
Weight
34kg / 78 lbs
Weight limit
Maximum total weight limit (combined weight of rider and cargo) of 400 pounds (180kg).
Folded Dimensions
37*25*31 inch
Unfolded Dimensions
69.3*22*50 inch
Included in the Box
R5
Toolkit
charger
Four keys
Manual
Fender
R5 Size
A - Total Length: 69.3 in
B - Handlebar to Ground Height: 49.6 in
C - Seat to Ground Height: 28.3 in
D - Seat Length: 15 in
E - Handlebar Length: 24.4 in
F - Wheelbase: 51.2 in
G - Stand Height: 26.4 in
H - Wheel Diameter: 23.2 in
Folded size
With just 3 simple steps, RS can be folded up in 15 seconds.
It can be folded and carried in various scenarios, including subways, elevators, buses and car trunks. Very easy to store or take with you on a trip.
Folded size:37*25*31(inches)
FAQs-R5
What is the weight of the bike ?
Total weight of R5 folding ebike is 102 lbs: the bike weight is 78 lbs, the battery weight is 12 lbs.
What is the difference between R5 and R5S?
R5S is a low-step design, suitable for the elderly and women wearing skirts, making it easier to get on and off the bike. R5 is a medium-step design, suitable for men and cross-country riders. Except for the difference in step design, the other functions of the two are the same.
How to start the power supply?
1. To open the R5, you need to insert the key into the keyhole at the bottom of the frame and the right side of the handlebar at the same time, and rotate it clockwise 1 circle.
2. To open the R5S, just insert a key into the keyhole on the right side of the handlebar and rotate it clockwise 1 circle.
What is the difference between the R5 and JANUS 2.0 series?
The R5 series is a comprehensive upgrade to the JANUS 2.0, offering a more refined and superior riding experience. Key improvements include a front and rear suspension system for exceptional comfort and stability, along with three stylish color options: black, white, and orange. The 20-inch one-piece 10-blade aluminum alloy wheels ensure durability and improved handling. Additional upgrades feature a rear seat cushion, a passenger backrest, and foldable passenger footrests for added convenience. The R5 is equipped with an upgraded high-beam front light, a premium leather half-turn throttle, and a large LED display, delivering unmatched safety, control, and style for riders.
Why are there 4 keys?
Both R5 and R5S are equipped with 4 keys.
R5 is equipped with 4 keys, the functions are: 2 to open the throttle, 2 to lock the battery and turn on the power
R5S is equipped with 4 keys, the functions are: 2 to open the throttle, 2 to lock the internal battery
The R5S features a low-span frame design, which makes it impractical to position the keyhole at the bottom of the frame due to the tilt angle. As a result, the keyhole has been relocated to the inside of the frame. To enhance convenience, the key’s power-off function is not enabled in this position, as it would be difficult to access. Instead, the battery key on the R5S is solely used for removing the battery.
Can I transport R5 in a car trunk?
R5 can be folded and stored in a car trunk. Its folded dimensions are 37*25*31 inch, and its unfolded dimensions are 69.3*22*50 inch.
Can I Ride R5 in The Rain?
Though Victrip e-bikes are designed to handle wet conditions, please keep in mind that riding in heavy rain may affect battery life and reduce traction, so exercise caution and avoid riding in the rain as much as possible. As for the waterproof level, the whole bike meets IPX4 standards; the motor, battery, and display meet IP64 standards.
What Types of Terrain Can R5 Handle?
R5 ebikes are designed for off-road use on rugged, unpaved surfaces with their wide and fat tires. These surfaces include dirt trails, gravel roads, grass, sand, and light snow. They can handle rougher terrains better than bikes with narrow road tires, but may still struggle on very technical mountain trails. R5 is also suitable for all-season use.
Are R5 E-Bikes Suitable for All Ages and Fitness Levels?
Victrip e-bikes are generally suitable for a wide range of ages (above 16 years old) and fitness levels, as the electric motor provides adjustable assistance to accommodate different riding abilities. Besides, please note the max load for R5 is 400 lbs, and please consult with a healthcare professional if you have any health concerns before riding.
Does my height/weight suit the R5?
The recommended rider height for R5 is 5'3" ~ 6'5"; The total payload capacity of R5 is 400 lbs (not including the bike weight).
Is my R5 pre-assembled?
The R5 is partially assembled. You have to install some parts by yourself, such as the front wheel, handlebar, saddle, pedals, and fender. You can download the R5 user manual or look at the assembly video for help.
